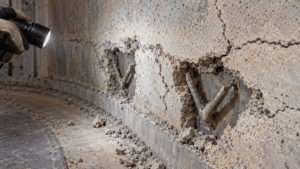

Common refractory failure causes include thermal shock, chemical attack, erosion, installation defects, improper dryout, and problems with the anchoring system. Several factors may work together, making a careful investigation essential.
At Refractory Anchors Inc. (RAI), we help customers select anchoring hardware for demanding industrial applications. Understanding how anchors interact with the surrounding refractory is an important step toward improving lining reliability.
Refractory anchors provide mechanical support that helps hold a lining in place during operation. Their performance depends on the relationship between the anchor, refractory material, equipment shell, and operating environment.
Anchor selection and placement deserve the same attention as refractory selection. A suitable refractory material can still perform poorly when its support system does not match the application.
Hot face spalling occurs when pieces break away from the surface exposed to process heat. Thermal shock, temperature gradients, chemical changes, and mechanical stress can contribute.
Anchors may also play a role. Metal and refractory expand differently during heating, creating stress around embedded hardware. The design must account for this movement to reduce the risk of cracking and material loss.
Separation can occur within the refractory or between lining layers. Weak installation interfaces, inadequate consolidation, and repeated thermal cycling are potential contributors.
In an anchored lining, failed welds or an unsuitable anchor arrangement can reduce mechanical support. However, separation alone does not prove that an anchor caused the failure. The investigation must examine the surrounding material and installation history.
A shell hot spot is an area where the equipment’s outer surface runs hotter than expected. Possible causes include lining loss, reduced thickness, cracks, or gaps that allow heat to reach the shell.
Metal anchors also conduct heat through the lining and may create a repeating pattern on thermal images. Interpreting that pattern requires comparison with the lining design and previous readings; an elevated temperature at an anchor location does not automatically establish failure.
Anchor failure analysis should examine the hardware, surrounding refractory, and operating history together. A damaged anchor may have initiated the problem—or deteriorated after the lining failed and exposed it to greater heat.
Useful evidence includes:
Intact anchors do not rule out an anchoring problem. Likewise, broken anchors do not establish the original cause. Comparing failed areas with nearby sound lining helps build a more reliable explanation.
Anchor shadowing generally describes poorly filled or poorly consolidated refractory behind or around an anchor. It occurs when hardware obstructs material flow during installation, leaving voids or weak areas.
These defects reduce contact between the anchor and refractory. Investigating shadowing means reviewing anchor congestion, installation access, material placement, and consolidation practices; not simply heat transfer.
Yes. Anchor length, embedment, geometry, spacing, and alloy selection all influence lining performance.
Insufficient embedment can limit support, while inadequate refractory cover can expose metal to more severe service conditions. Poor weld quality can further compromise the system. These details should follow the engineered lining design rather than a universal spacing or depth rule.
Alloy selection should account for the temperature experienced by the anchor, process chemistry, and operating cycles. Temperature capability alone does not establish suitability for a corrosive environment.
Cracking may also involve expansion restraint or installation defects. Changing the alloy without investigating these factors can leave the underlying problem unresolved.
Vibration repeatedly loads the refractory and its support system. Anchor layout must account for these mechanical demands as well as lining weight.
Gas flow can contribute to uneven heating and surface wear, particularly where abrasive particles strike the lining. As material wears away, anchors may become exposed to conditions beyond those anticipated in the original design.
During an investigation, compare damaged areas with burner locations, flow changes, equipment movement, and recurring wear patterns. These relationships can help explain why one section fails before another.
The most effective repair addresses the identified failure mechanism. Start with these priorities:
Adding anchors is not automatically an improvement. Excessive anchor density can obstruct refractory placement and create consolidation defects, while too few anchors can overload the support system.
A lasting repair starts with understanding why the lining failed. Thorough anchor failure analysis helps determine whether the problem involves hardware, installation, refractory properties, operating conditions, or a combination of factors.
RAI manufactures high-temperature alloy and stainless-steel anchoring hardware for castable, abrasion-resistant, and ceramic fiber refractory linings. Our team can help you evaluate anchor options for your application.
Planning a repair or reviewing a recurring lining problem? Contact Refractory Anchors Inc. to discuss your operating conditions, lining design, and anchor requirements.
